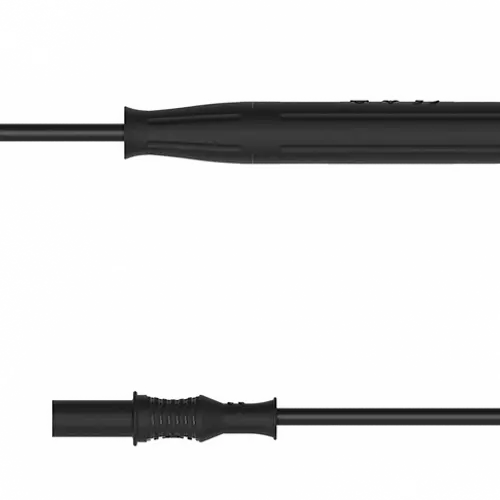

15330-IEC-0A5 Fused 0.5A 4mm Staright Shrouded Banana Plug PVC Lead
  • 15330-IEC-0A5 Fused 0.5A 4mm Straight Shrouded Banana Plug PVC Lead
  • This fused lead consists of 12A 0.75mm2 PVC cable with an inline fuse holder and straight shrouded 4mm Banana plugs on each end. Supplied with a 1000V 0.5A (500mA) FF 6.3 x 32mm 6.3mm fuse.
  • The fuse can be easily replaced by unscrewing the inline fuse holder.
  • Rated voltage : 1000 V CAT III
  • Fuse: 0.5A 1000V 50kA 6.3mm x 32mm IP2X according to EN / IEC 60529.
  • Rated current : 0.75mm² / 12A
  • Insulation material : PP
  • Contact parts: Brass and CuBe / Ni coated

Variable lengths, colours, Max Amps 20-36A, and alternative fuses available, please contact us for a quote.

15330-IEC-0A5 Fused 0.5A 4mm Staright Shrouded Banana Plug PVC Lead

Visit the Warwick Test Supplies website for more information on 15330-IEC-0A5 Fused 0.5A 4mm Staright Shrouded Banana Plug PVC Lead
