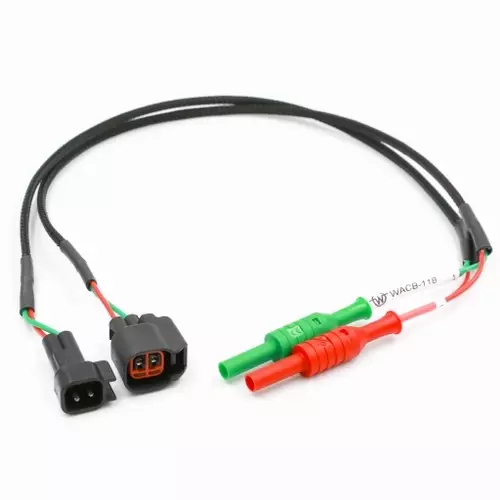

2-Way Ford ABS Sensor Breakout Lead
  • WACB-118 2 Way Connector Breakout Lead for Ford ABS Sensor
  • Connector Part Number: E-3550 / E-3385

The 2 way connector fits a Ford ABS Sensor for a range of diagnostic applications

The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based automotive oscilloscopes from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.

The individual wire connections are colour coded for identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.

All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use.

2-Way Ford ABS Sensor Breakout Lead
Our WACB automotive breakout leads use the following colour code convention:

  • Pin 1 - GREEN wire and female banana plug
  • Pin 2 - RED wire and female banana plug

Connectors vary across models and generations. Connector comparison is recommended to ensure the connector breakout is compatible for the intended test application.

Visit the Warwick Test Supplies website for more information on 2-Way Ford ABS Sensor Breakout Lead
