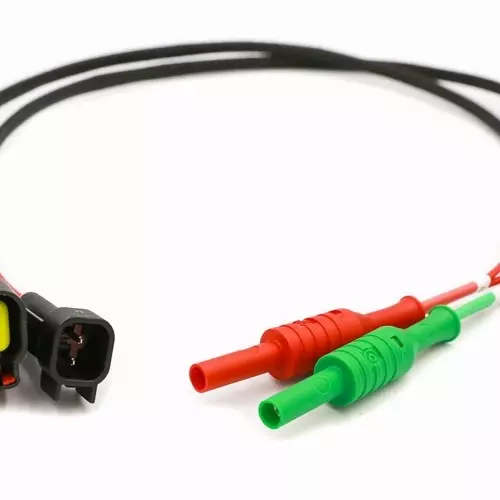

2way USCAR EV6/EV14 Automotive Connector Breakout

WACB-108 2way USCAR EV6/EV14 Type C Vehicle Diagnostic Breakout Lead

EV6/EV14 USCAR Female Fuel Injector Connector

The 2 Way Bosch breakout lead has been designed to connect quickly and reliably to 2pin Bosch automotive connectors commonly found on Bosch EV6 injectors and on the newer Bosch EV14 ‘pencil thin’ fuel injectors.

Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.

The WACB-108 breakout lead features 4mm banana plugs that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.

Reliable readings start with the point of connection. Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop.

All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and banana plug
• Pin 2 - RED wire and banana plug
