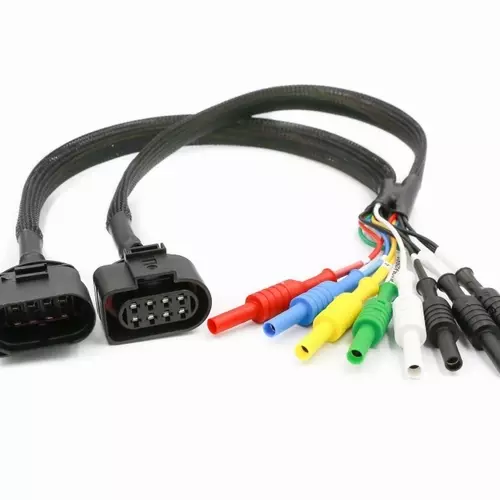

8 way 2.8mm Breakout For VAG Direct Injection Vehicles

• 8 Way Injectors Diagnostic Breakout Lead - 2.8mm Contacts - For VAG Vehicles
• Connector Part Numbers: 8D0973834/8D0973734
• The 8 Way 2.8mm breakout lead has been designed to connect quickly and reliably to Direct Injection Connectors commonly found on VW, Audi and Skoda, CAWB, CAWA, CCTA engines.
• Prevent damage to the vehicles' sensor and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.
• The WACB-V2880 breakout lead features 4mm banana plugs that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.
• Reliable readings start with the point of connection. Ensure your findings are accurate and prevent miss-diagnosis with reliable breakouts that are purpose built for the workshop.
• All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and banana plug
• Pin 2 - RED wire and banana plug
• Pin 3 - BLUE wire and banana plug
• Pin 4 - YELLOW wire and banana plug
• Pin 5 - WHITE wire and banana plug
• Pin 6 - BLACK wire and banana plug
• Pin 7 - BLACK wire and banana Plug (Numbered Marking)
• Pin 8 - BLACK wire and banana Plug (Numbered Marking)
