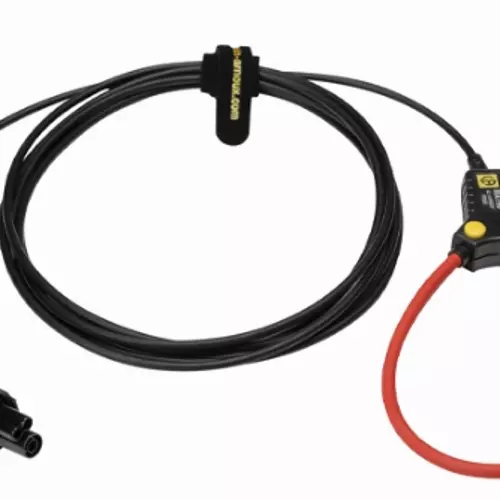

AmpFlex/ MiniFlex MA194 100mA - 10 000A Current Clamp

The MiniFlex MA194 clamp is a current clamp for measuring AC current without any action required on the installation (no need to break into the current circuit to be measured).

Current clamps, MiniFlex® and AmpFlex® flexible current sensors are used to measure the current flowing in a cable without opening the circuit. They also insulate the user from dangerous voltages in the circuit. The clamp lead for the output signal is equipped with a moulded 4-pin connector compatible with the latest-generation Qualistar Class A models from Chauvin Arnoux. The clamp is then powered by the instrument. The specific connector allows automatic recognition of the clamp by the instrument.

Features:

• Measurement range: 100mA - 10 000A AC
• Clamping Dia: 70mm, 100mm or 320mm
• Lengths: 250mm, 350mm, 1000m
• Weight: 250g
• Cable length: 3m
• Rating: IEC 61010 1000V CAT III/

For use with Chauvin Arnoux Power Quality Meters and Data Loggers
