BMW Automotive Connector Breakout Lead Set

BMW Kostal and Hirshman Vehicle Diagnostic Breakout Lead Set - 2, 3, 4, & 5 Pin Leads

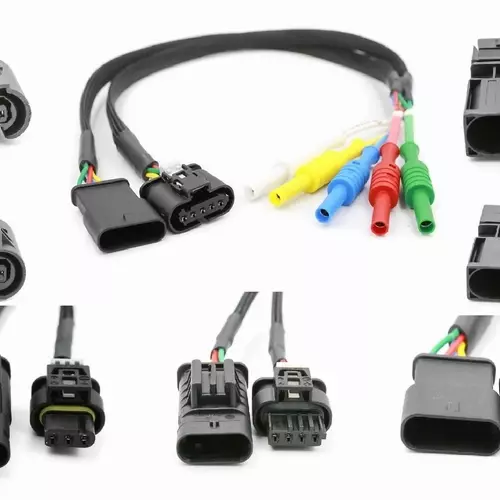

The WACB-B-SET features 7 breakout leads utilising Kostal and Hirschmann Connectors. These breakout leads are designed for BMW vehicle sensors and actuators. The 4mm banana test plugs offer access to connect BNC leads to capture the output signal through a scope meter. The breakout cable gives easy access to individuals wires and the capability to probe with current clamps.

Reliable measurement readings start with the point of connection. Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop. Prevent damage to vehicle sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on BMW vehicles with speed and reliability.

Warwick Test Supplies Automotive Breakout Leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and banana plug
• Pin 2 - RED wire and banana plug
• Pin 3 - BLUE wire and banana plug
• Pin 4 - YELLOW wire and banana plug
• Pin 5 - WHITE wire and banana plug

Set consists of the following breakout leads:

• BMW 2pin Kostal Coding A - Injector Breakout Lead - WACB-B112A
• BMW 2pin Kostal Coding A1 - Injector Breakout Lead - WACB-B112A1
• BMW 3pin Kostal Coding A - Fuel Rail Pressure Sensor - WACB-B113A
• BMW 3pin Kostal Coding A1 - Fuel Rail Pressure Sensor - WACB-B113A1
• BMW 3pin Hirschmann - Camshaft & Crankshaft Lead - WACB-B113H
• BMW 4pin Hirschmann - Mass Air Flow (MAF) Lead - WACB-B114H
• BMW 5way Kostal - Exhaust Gas Re-circulation (EGR) Lead - WACB-B115
