Concord 09-9049-1-03 PC Jack Non-Insulated (Gold)
  • Concord Electronics 09-9049-1-03 PC Jack Non-Insulated (Gold)
  • MoQ 500 units.
  • Body material: Brass
  • Body Finish: Gold Plating
  • Spring Material: Beryllium Copper
  • RoHS Compliant: YesAccepts Pin/Plug/Jack Size: 0.016", 0.019" and 0.020" ± 0.001. Once a 0.020" pin is inserted, use of 0.016" and 0.019" pins are not recommended.

Recommended mounting hole 0.052+0.002/-0.001 (#55 drill). Board thickness 0.031" to 0.156".

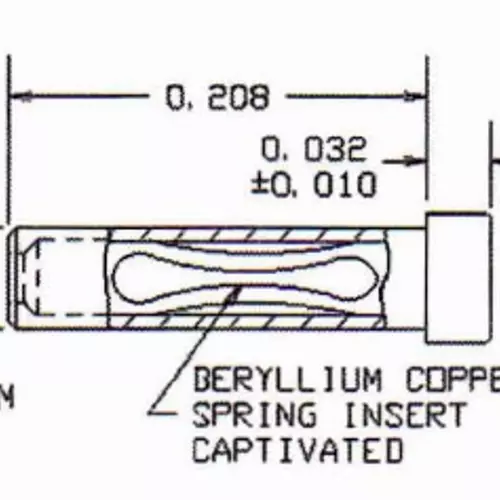

Concord 09-9049-1-03 PC Jack Non-Insulated (Gold)

Visit the Warwick Test Supplies website for more information on Concord 09-9049-1-03 PC Jack Non-Insulated (Gold)
