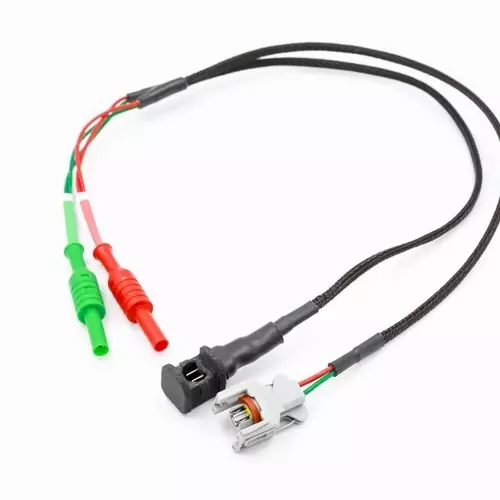

Delphi 2way Injector Automotive Connector Breakout Lead

• 2 Pin Delphi Injector Automotive Oscilloscope Diagnostics Breakout Lead
• Manufacturers Connector Part Number: 240PC024S8014
• This 2 pin Delphi Injector breakout lead is part of our range of automotive connector breakout leads and is designed to connect to small Delphi injector connectors found on Ford, Jaguar and other vehicle manufacturers. The lead allow technicians to connect to an injector and conduct diagnostic voltage and current measurements without the need to back pin or damaging the connector's moisture seal.
• The lead include a custom moulded male connector that replicates the connection built into the body of the Delphi injector.

The output signals from the breakout lead banana plugs can be connected via a BNC to 4mm Banana Plugs Patch Lead to handheld or PC based oscilloscopes from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.

The individual wire connections are colour coded for i

dentification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.

All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and female banana plug
• Pin 2 - RED wire and female banana plug
• Pin 3 - BLUE wire and female banana plug
• Pin 4 - YELLOW wire and female banana plug
