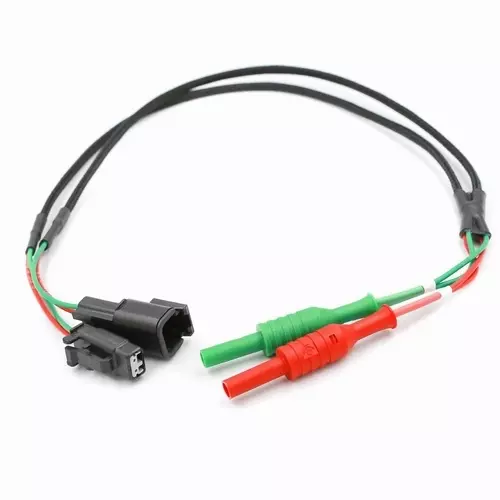

WACB-603 Deutsch DTMH 2way Key A Industrial & Commercial Auto Diagnostic Breakout Lead

Connector Part Number: DTMH04-2PA/DTMH06-2SA

The 2 Way Deutsch DTMH breakout lead has been designed to connect quickly and reliably to 2 pin Deutsch automotive connectors commonly found on agricultural, industrial and commercial vehicles such as plant, tractors and trucks. The breakout lead features both female, DTMH06-2SA, and male, DTMH04-4PA connectors with the 'A' Type Keyway.

Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.

The WACB-603 breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.

Reliable readings start with the point of connection. Ensure your findings are accurate

All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and female banana plug
• Pin 2 - RED wire and female banana plug
