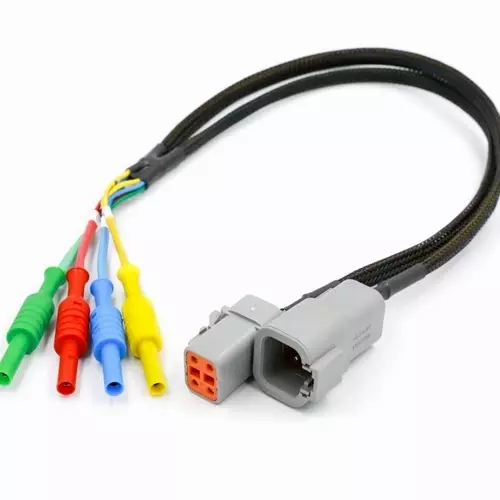

Deutsch 4way DTP 4 Way Automotive Connector Breakout

4 Pin Deutsch DTP Vehicle Diagnostic Breakout Lead

The 4 Way Deutsch breakout lead has been designed to connect quickly and reliably to 4 pin Deutsch DTP connectors commonly found in agricultural, heavy goods automotive, and industrial applications where a weather resistant connection is required.

Prevent damage to the equipment or vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.

The WACB-105 breakout lead features 4mm banana plugs that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.

Reliable readings start with the point of connection. Ensure your findings are accurate and prevent miss-diagnosis with reliable breakouts that are purpose built for the workshop.

All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and banana plug
• Pin 2 - RED wire and banana plug
• Pin 3 - BLUE wire and banana plug
• Pin 4 - YELLOW wire and banana plug
