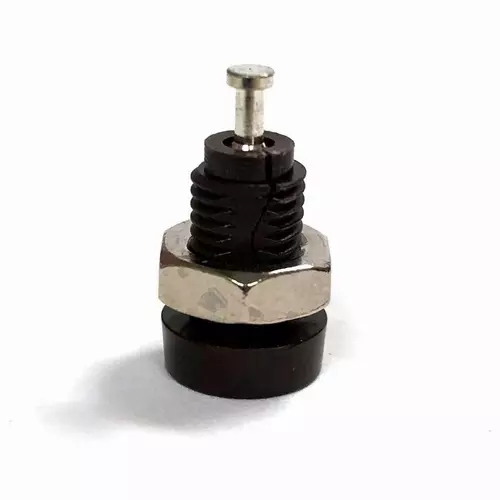

E-Z Hook 9283 2mm Miniature Panel Mount Banana Socket
  • E-Z Hook 9283 2mm Miniature Banana Socket Panel Mount
  • Nylon body with recessed entry design. Three-level copper, nickel & tin plated brass contact and terminal. 1/4-32 UNEF thread. Nut furnished.
  • Mounts in 0.257" (6.53 mm) hole. For panel thickness up to 0.187" (4.75 mm).
  • Specification
  • Maximum Current: 10 Amps
  • Maximum Voltage: 5700 VRMS
  • Maximum Temperature: +93°C (+200°F)

View the datasheet for more information.

E-Z Hook 9283 2mm Miniature Panel Mount Banana Socket

Visit the Warwick Test Supplies website for more information on E-Z Hook 9283 2mm Miniature Panel Mount Banana Socket
