E-Z Hook X2015 Micro Double SMD Hook
- E-Z Hook X2015 Micro Double Hook
- The smallest of E-Z Hooks micro double hook's. Designed for use with:
- Surface Mount Devices and PQEP packages up to 0.0196" (0.5mm) lead pitch
- 0.006" (0.1524mm) wire
- Where a connection point is very small.
- Moulded plastic parts are durable nylon with an insulated hook shaft allowing for simultaneous side by side connections and connection in tight spaces. Micro Clip Dimensions; Body Width 1.73mm, Body Height including lever 17.02mm, Probe Tip Dia. 0.64mm
- To ensure accurate readings this micro hook is designed with no sliding contact points so the hooks are directly connected to the connection pin plug.
- The pin plug is 0.029" (0.74mm) diameter gold plated leaded nickel copper to enable connection into a socket lead.
Features:
- Used with PQEP packages up to 0.0196" / 0.5mm lead pitch
- Quality Construction
- Hooks and 0.030"
/ 0.762mm pin plug are directly connected (no sliding parts!)Hooks are stationary - the tip of the housing moves out to close the two hooks together. Board under test must be inactive when connecting hooks.

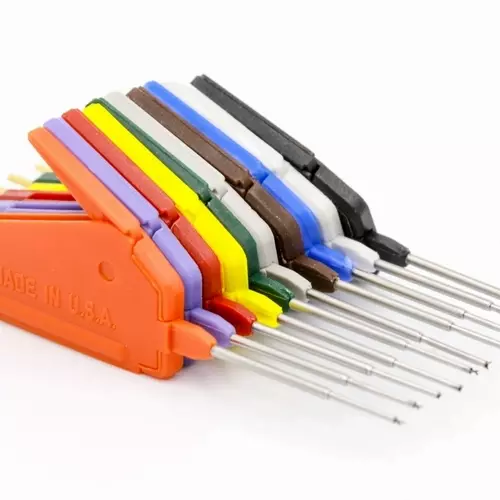

Choose from 10 colours or as a set containing all 10.
View the Datasheet for more information.
Visit the Warwick Test Supplies website for more information on E-Z Hook X2015 Micro Double SMD Hook
