Fluke 1673 FC Multifunction Electrical Installation Tester with FEV300 Charge Station Adapter Kit

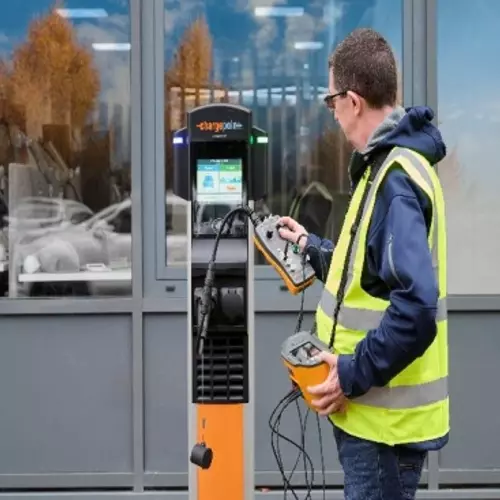

This kit is designed for those who are required to test electric vehicle charge points and stations. It consists of the 1673 Multifunction Tester with the FEV300 EV charging station test adapter.

The FEV300 simulates the presence of an electric vehicle allowing the user to safely conduct functionality and safety checks of charging tations mode 3 AC charging.

The 1673 FC Multifunction Installation Tester verifies the safety, optimal functionality and integrity of electrical installations in domestic, commercial and industrial applications. It can ensure that fixed wiring is safe and correctly installed to meet the requirements of IEC 60364-6, HD 384 and all relevant local standards. It has great reliability, simple operation and all the power needed for day in, day out installation testing.

The newer 1670 series Fluke Multifunction Installation testers have a better ergonomic design, seemless user interface, integrated data management and comprehensive reporting software.

Quickly and easily input site information and setup circuits to be tested via the integrated color touch screen, your mobile device or your PC so you can start testing sooner. (More time testing, less time setting up)

User programmable auto tests so you can run through an entire automatic installation test sequence at the touch of a button.

Automatic measurement validation compares installation test results to an integrated standards reference giving you an immediate visual pass/fail indication with user defined limit warnings.

Reduce manual data entry and record keeping with wireless Bluetooth connectivity that automatically links test results to the circuit or point under test.

Preview inspection results in the field via the instrument, mobile device, or PC. Quickly generate inspection certificates onsite, with a few simple steps, allowing you to finalize and invoice your inspection at the time of service

Fluke Connect compatibility allows users to quickly and easily store, manage, and share measurement data from the field while TruTest Software enables them to easily generate documentation and reports

Features

• USB-C Port supports charging & data transfer
• Digital rotary dial - supports new feature additions
• Form capture
• Project setup
• Bi-directional data
• 660V max volatge, 600V operation
• Pass/Fail limits
• Onscreen help
• Fluke Connect™ App compatibility
• Fluke cloud storage
• Memory
• Z Max memory

Measurement Functions

• Voltage drop measurement
• Voltage AC/DC & frequency
• Wiring polarity checker, detects broken PE and N wires
• Insulation resistance
• Continuity & resistance
• Measure motor windings with continuity test (@10mA)
• Loop & line impedance
• Prospective earth fault current (PEFC/IK)
• Prospective short-circuit current (PSC/IK)
• RCD trip time
• RCD tripping current (ramp test)
• Measures trip time & current for RCD type A & AC in one test
• RCD variable current
• Automatic RCD test sequence. On/Off switchable Auto Start for RCD and Loop test
• Phase sequence test
• Insulation at L-N, L-PE, N-PE inputs
• Continuity at L-N, L-PE, N-PE inputs
• EV Test 6 mA DC (RCD A/EV, RCD B/Mi, RDC-DD)
• Earth Resistance
• Loop and line impedance - mΩ resolution

Included accessories

TBC

View the Datasheet for more information.
