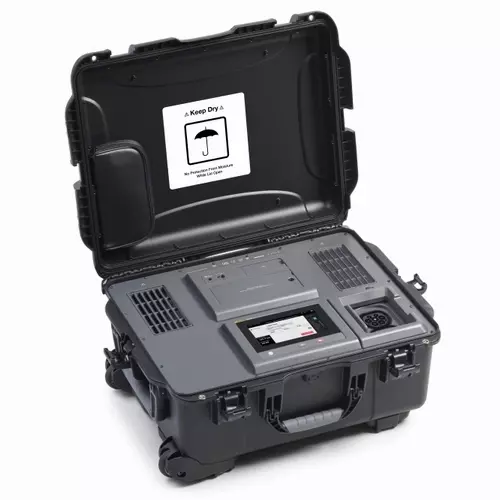

Fluke FEV500 Fast DC EV Charging Station Analyzer - CCS2 PRO with TRUTEST Software

Test, validate, and document Fast DC charging stations with one portable analyzer.

he Fluke FEV500 is a field-ready, advanced analyzer that streamlines the testing of Fast DC EV charging stations by combining essential safety and performance checks into a single device. Designed for ease of use, it simplifies the evaluation process without the need for additional test and measurement equipment, ensuring that EVSE (Electric Vehicle Supply Equipment) remains safe and operational. The FEV500 has an intuitive interface and features seamless software integration, making it easier for technicians to troubleshoot, manage data, and maintain EVSE uptime with confidence and efficiency.

The FEV500 is compliant with ISO 15118 and DIN SPEC 70121 international standards for the digital communication between electric vehicles and electric vehicle supply equipment. It has been tested for compatibili

Key Features

• Comprehensive Testing: Performance and safety testing combined in one device.
• EV Simulation, No External Equipment Needed: Simulates electric vehicle charging during testing, eliminating the need for additional load banks, electric vehicles or multifunction testers. Verifies charging
• station operability and performance by simulating a kW load to mimic real charging sessions.
• Autotest Feature: Run pre-configured test sequences with automatic execution and clear pass/fail results. No need to use other equipment or reconfigure test leads.
• User-Friendly Interface: Intuitive touchscreen display visible in bright sunlight with guided workflows and for easy operation and interpretation of results.
• CCS Connectivity: Supports CCS connectors for widespread compatibility. Available in CCS1 or CCS2 models.
• Portable and Durable: Rugged design ideal for field use, with a removable, rechargeable battery, no outlet required.
• Automatic Data Management: Tracks and stores unique EVSE and connection point IDs for streamlined asset management.
• TruTest™ Software: Facilitates documentation and reporting of results.

Performance and Safety Tests:

Communication & Performance:

• CCS Charge State Verification
• Signal Level Attenuation
• Characterization (SLAC)
• Low-Level Communication Testing for CCS
• Power Line Communication (PLC) Testing
• Load Testing (Voltage & Current during simulated charging)

Electrical Safety:

• Insulation Resistance (IEC 61557-2)
• Low Impedance Measurement (IEC 61557-4)
• IMD Test (Insulation Monitoring Device, IEC 61557-8)
• Residual Voltage Measurement (IEC 61851-1)

Specifications:

• Dimensions: 650 x 508 x 300mm
• Weight: 26kg
• Battery Type: Li-Ion RRC2040-2 (replacable)
• Battery Runtime: 10 hrs
• USB-C Ports: USB-C Charging, Flash Drive TruTest, Calibration
• GNSS: GPS receiver with internal antenna for time syncronization.
• Safety: IED 61010-1 Polution Deg 2.
