JCASE Fuse Breakout Extension
WFB004 JCASE Fuse Breakout Extension Lead for Automotive Diagnostics

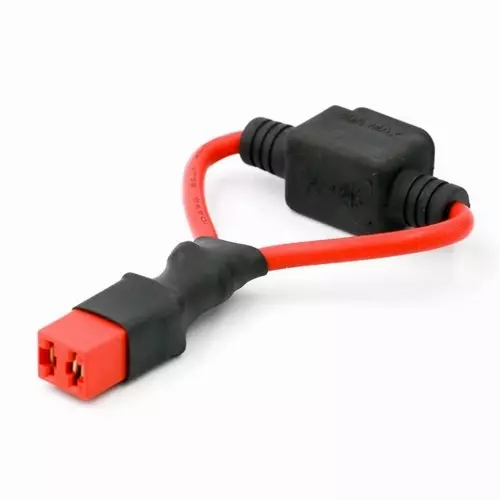

The WFB004 JCASE Fuse Breakout extension lead allows you to measure the current flowing through a standard or low profile JCASE fused circuit enabling the identification of faulty circuits or abnormal current drain. Using the breakout extension lead provides a convenient point to connect a suitable Current (Amp) Clamp to measure the amount of current flowing.
The fuse extension lead is simple, easy to use and will save you valuable time during your vehicle diagnostics. Just follow this guide:
- Remove the fuse from the circuit you wish to test from the fuse box.
- Replace it with a fuse extension lead and then insert the original fuse into the socket on the extension lead.
- The current flow can then be measured by connecting your current clamp over the extension lead cable and connecting it to a multimeter or a handheld or PC based oscilloscopes from; PicoScope, Hantek, Uni-T, TieP
ie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.
Recommended current clamps are:
- CA-60
- CA-600
