WFB006-S Custom JCASE to ATC/ATO Blade Fuse Breakout Extension Lead for Automotive Diagnostics

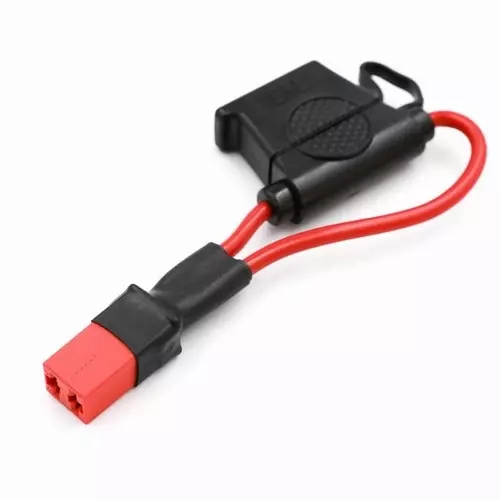

The WFB006-S JCASE to ATC/ATO Blade Fuse Breakout extension lead allows you to measure the current flowing through a standard or low profile JCASE fused circuit and conduct a voltage drop test across the blade fuse enabling the identification of faulty circuits or abnormal current drain. Using the breakout extension lead provides a convenient point to connect a suitable Current (Amp) Clamp to measure the amount of current flowing. The use of the ATC/ATO fuse also minimises the cost of fuse replacement should the fuse blow whilst conducting tests.

The fuse extension lead is simple, easy to use and will save you valuable time during your vehicle diagnostics. Just follow this guide:

  • Remove the fuse from the circuit you wish to test from the fuse box.
  • Replace it with a fuse extension lead and then insert the same value ATC/ATO fuse into the socket on the extensio
JCASE to ATC/ATO Blade Fuse Breakout Extension
n lead.
  • The current flow can then be measured by connecting your current clamp over the extension lead cable and connecting it to a multimeter or a handheld or PC based oscilloscopes from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Autel MaxiScope, Sealey, Bosch, Snap-On, Fluke.

    • Recommended current clamps are:

    • CA-60
    • CA-600

    Note that this product is made to order.
