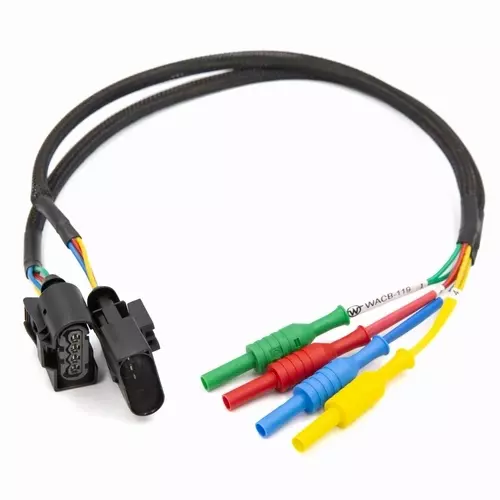

Kostal 4way Automotive Connector Breakout Lead

4 Pin Kostal Automotive Oscilloscope Diagnostics Breakout Lead

Connector Part Number: 9441491/9441491MALE

This 4 Way Kostal breakout lead is part of our range of automotive connector breakout leads and is designed to connect to 4 pin Kostal connectors found on JCB T4I and T4F engines. The leads allow automotive technicians to connect to a connector within the vehicle loom and conduct diagnostic voltage and current measurements of various sensors, actuators and components. The output signals from the breakout lead banana plugs can be connected to a Digital Multimeter, Insulation Test Meter and Handheld or PC based Oscilloscope via a BNC to 4mm Banana Plugs Patch Lead.

The individual wire connections are colour coded for identification and designed to allow easy access with a current (Amp) clamp so that wires can be tested in-circuit allowing both current and voltage measurements to be taken simultaneously.

All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and female banana plug
• Pin 2 - RED wire and female banana plug
• Pin 3 - BLUE wire and female banana plug
• Pin 4 - YELLOW wire and female banana plug
• Pin 5 - WHITE wire and female banana plug
• Pin 6 - BLACK wire and female banana plug
