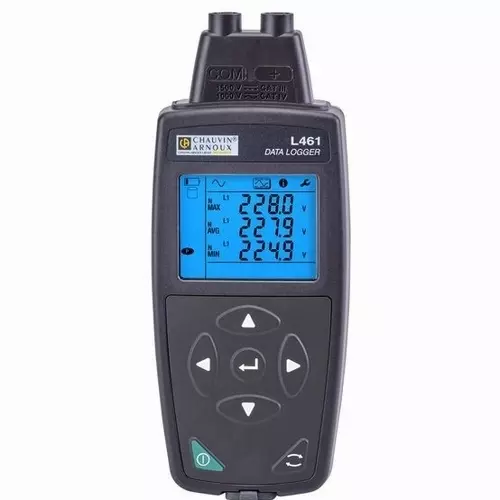

L461 AC/DC Voltage Logger up to 1500V DC
  • L461 AC/DC Voltage Logger, up to 1500V DC
  • The L461 Voltage Logger can be used to gather data and monitor 2 channel feeds to analyse voltage measurements up to 1500V DC. Ideal for use on Photovoltaic installations.
  • These voltage loggers can operate over a very long period of time if required. They are simple to set up and can communicate via a USB port or networked via WiFi mode.
  • Data logger transfer software is used to configue the device and process all measurements.

Features:

  • 1 measurement channel
  • Measurements from 10V-1200V AC and 10V-1700V DC
  • Backlit display
  • 8GB Memory
  • 1 measurement per second
  • Aggregation form 1 to 60 mins
  • Powered by USB or 3x AA batteries
  • Battery life of 3 days without WiFi
  • Dimensions: 178mm x 34mm x 72mm
  • Weight: 350g
  • Sensor lead 1.2m
  • Operating Temp: -20°C to 50°C
  • Protection: IP54
  • Electrical
L461 AC/DC Voltage Logger up to 1500V DC
Safety: IEC 61010 600V CAT IV/ 1000V CAT III/ 1500V DC CAT III

In the box:

  • L461 Voltage Logger
  • USB micro USB cable
  • USB Mains Adapter
  • Data transfer and management software
  • 3x batteries
  • Quick start guide
  • 2x 3m 1500V DC Voltage leads
  • 2x 1500V DC Crocodile Clips
  • Test report and operating manual.

Visit the Warwick Test Supplies website for more information on L461 AC/DC Voltage Logger up to 1500V DC
