Land Rover 12 Way Automotive Connector Breakout Lead

• WACB-LR-8854 Land Rover 12 Way Automotive Connector Breakout Lead
• Connector Part Numbers: Female 7283885430, Male 7282885430

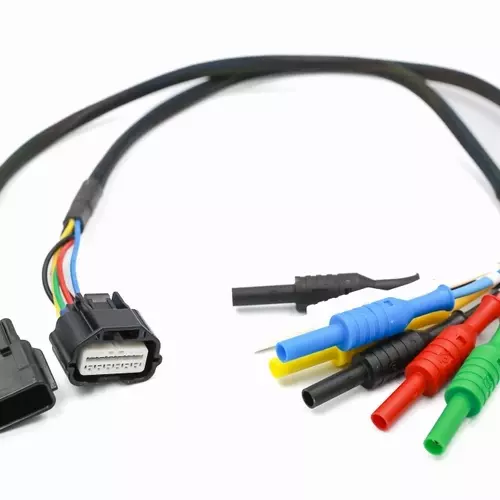

• This 12 Way breakout lead has been designed to connect quickly and reliably to 12 pin Yazaki connectors commonly found on Land Rovers.
• Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.
• The 7283885430 breakout lead features 4mm banana plugs that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.
• Reliable readings start with the point of connection. Ensure your findings are accurate and prevent miss-diagnosis with reliable breakouts that are purpose built for the workshop.
• All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors.

This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and banana plug
• Pin 2 - RED wire and banana plug
• Pin 3 - BLUE wire and banana plug
• Pin 4 - YELLOW wire and banana plug
• Pin 5 - WHITE wire and banana plug
• Pin 6 - BLACK wire and banana plug
• PIN 7 - Black wire and banana plug
