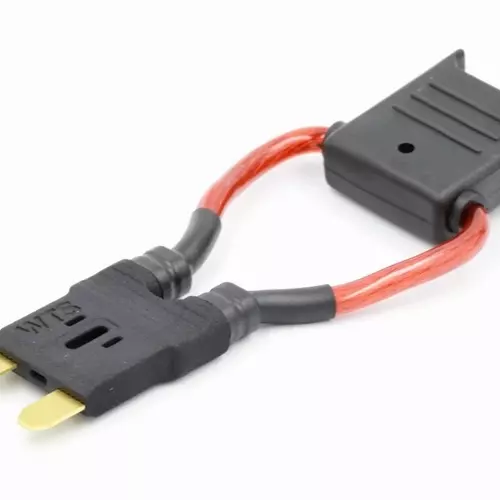

• WFB003 Maxi Fuse Breakout Extension Lead for Automotive Diagnostics
• The WFB003 Maxi Fuse Breakout extension lead allows you to measure the current flowing through a fused circuit enabling the identification of faulty circuits or abnormal current drain. Using the breakout extension lead provides a convenient point to connect a suitable Current (Amp) Clamp to measure the amount of current flowing.
• The fuse extension lead is simple, easy to use and will save you valuable time during your vehicle diagnostics. Just follow this guide:

• Remove the fuse from the circuit you wish to test from the fuse box.
• Replace it with a fuse extension lead and then insert the original fuse into the socket on the extension lead.
• The current flow can then be measured by connecting your current clamp over the extension lead cable and connecting it to a multimeter or a handheld or PC based oscilloscopes from; PicoScope, Hantek, Uni-T, TiePie, CarScope, Aut

Recommended current clamps are:

• CA-60
• CA-600
