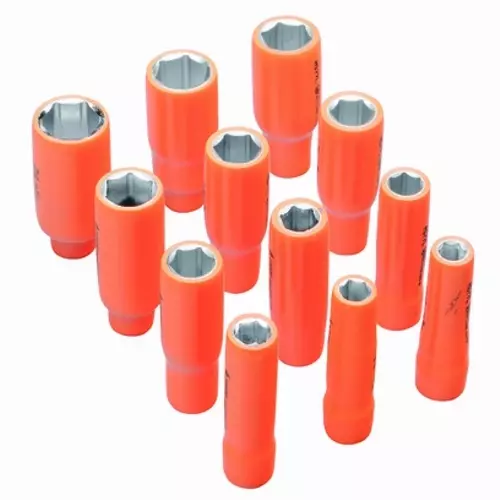

MS77L Insulated Sockets
- MS77L Insulated 6 Point Female Hex Sockets 3/8" Square Drive
- 1000V Insulated Long sockets suitable for difficult access (long shafts and threads). Made from chrome vanadium steel. Sockets are suitable for use with standard or mechanically locking ratchets.
- The socket has 4 ogive-type recesses inside the female square to accommodate the crimped ball of the ratchet and thus ensure a safe and effective holding of the assembly (up to 500 Newtons to the pull-out).A flange is also included for optimum electrical protection when used with a ratchet spanner or an extension.
- Advantages : Outer diameter reduced to a minimum for optimum accessibility on installations.
- Standards:
- EN 60900 / IEC 60900 / ISO 691 / ISO 1174-1 / ISO 1711-1 / ISO 2725-1
- Sizes:
- MS77L 08 = Diameter (mm): 8 , Weight (g): 40
- MS77L 09 = Diameter (mm): 9 , Weight (g): 40
- MS77L 10 = Diameter (mm): 10 , Weight (g): 60
- MS77L 11 = Di
ameter (mm): 11 , Weight (g): 80MS77L 12 = Diameter (mm): 12 , Weight (g): 80 MS77L 13 = Diameter (mm): 13 , Weight (g): 105 MS77L 14 = Diameter (mm): 14 , Weight (g): 120 MS77L 16 = Diameter (mm): 16 , Weight (g): 130 MS77L 17 = Diameter (mm): 17 , Weight (g): 150 MS77L 18 = Diameter (mm): 18 , Weight (g): 150 MS77L 19 = Diameter (mm): 19 , Weight (g): 150 MS77L 21 = Diameter (mm): 21 , Weight (g): 160 MS77L 22 = Diameter (mm): 22 , Weight (g): 170 MS77L 24 = Diameter (mm): 24 , Weight (g): 170
