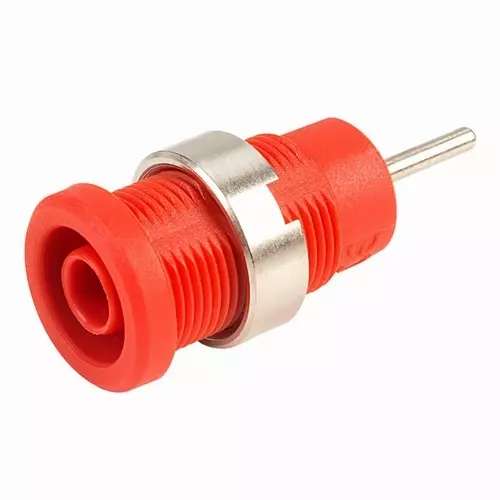

PJP 3267-I 12mm Pin 4 mm Safety Banana Socket
- Electro PJP 3267-I 4 mm Safety Banana Socket - 12 mm Pin
- 4 mm Banana (female) Jack (socket) w/ 1.9 mm diameter x 12 mm long Pin. Ideal for panel mounting, round nut fixing.
- Designed for shrouded 4 mm plugs but will also accept standard 4 mm plugs.
- Specification
- IEC 1010 safety standards - Rated to CAT II 1000 V / CAT III 1000 V / CAT IV 600 V.
- Current Rating 36 A
- Operating Temperature -10°C to +80°C
- Also available in Yellow/Green, please contact us.
- View the Datasheet for further Technical Specification.
