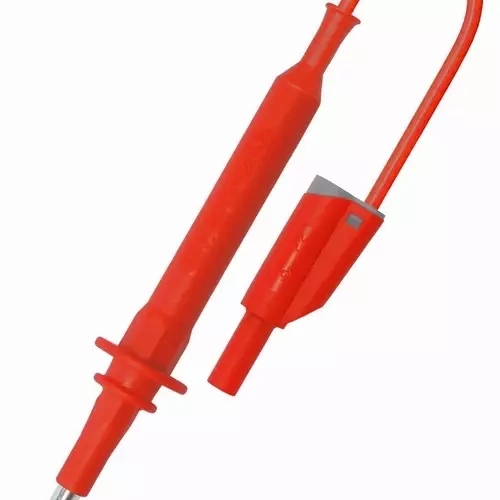

PJP 4970-IEC10A600V-120 10A Fused Test Probe Stacking Plug
- Electro PJP 4970-IEC10A600V-120 Spring Loaded Tip and Retractable Sleeve 10A Fused Probe
- Obsolete - Last Stock
- The 4970-IEC10A600V-120 assembly features a spring loaded test tip with retractable Sleeve and a 4mm Tip Fused Probe Body to Straight Stacking 4 mm Banana (male) Plug Lead.
- Fused test leads feature a built-in fuse within the test probe that provides an additional layer of protection to the individual undertaking an electrical measurement. Fused test leads can protect the technician against hazards from where electrical supply is short-circuited.
- Specification
- The wire is 0.75mm² and made from PVC. The Wire comes in 120 cm length and is available in a range of colours.
- Voltage Rating of 1000V AC CAT III/ 600V CAT IV
- Current Rating of 12A
- Fuse 10A AC - 600 V AC
- Insulation material : PPMetallic material : Brass and CuBe / Ni coated
Visit the Warwick Test Supplies website for more information on PJP 4970-IEC10A600V-120 10A Fused Test Probe Stacking Plug
