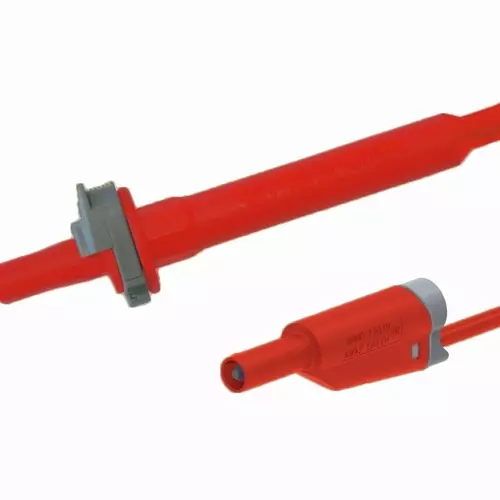

PJP 5970-IEC-120 IP2X Test Probe to Stacking Plug
  • Electro PJP 5970-IEC-120 IP2X Test Probe - Stacking Plug - 120cm
  • The 5970-IEC-120 assembly features a locking sleeve 4mm IP2X Test Probe to a Stacking 4mm Banana (male) Plug Lead.
  • The test lead feature a robust probe body with a lockable retractable sleeve 4mm banana tip. The probe has finger guards to prevent a user from accidentally touching the front of the probe when in use.
  • Specification
  • The wire is 0.75mm² and made from PVC. The Wire comes in 120 cm length and is available in a range of colours.
  • Voltage Rating of 1000V AC CAT II
  • Current Rating of 12A.
  • Insulation material : PP - PA6.6Metallic material : Brass and CuBe / Ni coated
PJP 5970-IEC-120 IP2X Test Probe to Stacking Plug

Visit the Warwick Test Supplies website for more information on PJP 5970-IEC-120 IP2X Test Probe to Stacking Plug
