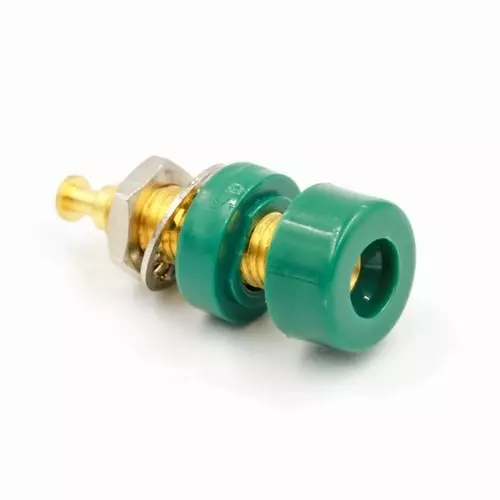

Pomona 2854 Gold Plated Banana Socket
  • Pomona 2854 Gold Plated Banana Jack
  • The Pomona 2584 Banana Jack mount into panels ranging in thickness from .063 (1.6mm) to .375 (9.5mm).
  • Features a gold plated body for optimum electrical connection. Available in 6 colours.
  • Specification
  • Operating Temperature: +115°C (+239°F)
  • Operating Voltage: For CE compliance and for personal safety, do not hold in hand when voltages exceed 30 Vrms/60 Vdc
  • Maximum Voltage (Hands Free Testing): 2500 WVDC
  • Current Rating: 15 A

Alternative Models

  • Pomona 4900 > High Temperature Applications
  • Pomona 1581 > Optimum Electrical Connection

View the Datasheet attached for more information.

Pomona 2854 Gold Plated Banana Socket

Visit the Warwick Test Supplies website for more information on Pomona 2854 Gold Plated Banana Socket
