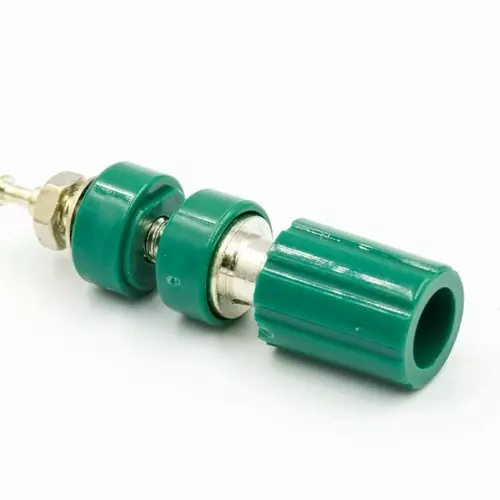

Pomona 3760 4 mm Binding Post
  • Pomona 3760 Binding Post - Tin Plated
  • Accepts standard banana plug, wire or spade lug. The 3760 mounts in panels from 1.77mm to 6.35mm thick.
  • Specification
  • Insulated Captive Thumb Nut: Brass
  • Insulation: Polycarbonate
  • Mounting Base: Polycarbonate
  • Insulator: Polycarbonate
  • Lockwasher: Nickel Plated Steel
  • Hex Nut: ΒΌ #8-32 Nickel Plated Brass
  • Finish: Bright tin plated brass
  • Operating Voltage: Hands free usage in controlled voltage environments: 2500 Vrms maximum.
  • <33V AC - <70V DC.Current Rating 15 A
  • Note: Orange and Violet are OBSOLETE, last stock.
Pomona 3760 4 mm Binding Post

Visit the Warwick Test Supplies website for more information on Pomona 3760 4 mm Binding Post
