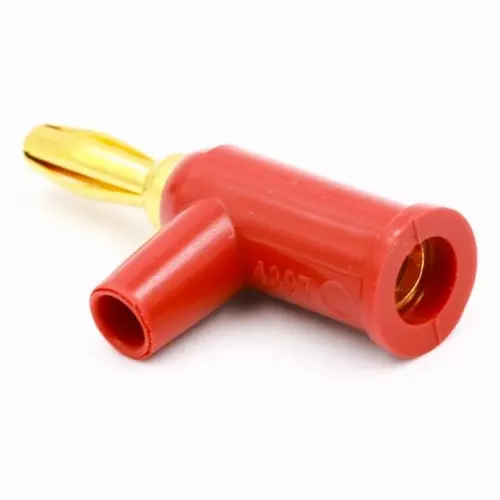

Pomona 4897 4mm Solderless and Stackable Banana Jack
- Pomona 4897 4mm Solderless and Stackable Banana Jack
- Designed to fit on the end of any 22 AWG to 18 AWG wire. The cross hole wire entry fits wires up to 0.12” (3mm) diameter. Available with tarnish resistant nickel or gold plating for very low contact resistance.
- Features
- Gold Plated Banana Plug with Polypropylene Insulation
- Designed to fit on the end of any 18-22 AWG wire.
- Cross hole wire entry fits wires up to 3mm diameter
- Set screw simplifies assembly of test leads and jumpers
- Specification
- Voltage: Hands free testing in controlled voltage environments: 5000 Vrms Max.
- For CE compliance: not intended for hand-held use at voltages above 33 Vrms/70 Vdc.
- Maximum Operating Temperature: +122 F (+50 C).
- Current Rating: 15 AView the Datasheet for the complete Technical Specification.
Visit the Warwick Test Supplies website for more information on Pomona 4897 4mm Solderless and Stackable Banana Jack
