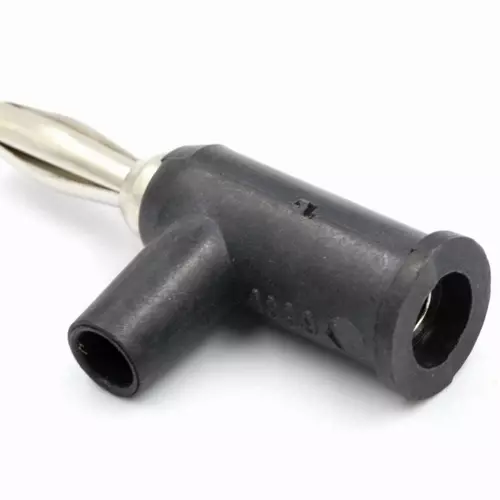

Pomona 4899 4mm Banana Jack with High Temp Insulation
- The Pomona 4899 Banana Jack - Each Unit Sold Separately
- Designed to fit on the end of any 22 AWG to 18 AWG wire. The cross hole wire entry fits wires up to 0.12” (3mm) diameter. Nickel Plated Banana with High Temperature Black Insulation (Polyphenylene Sulfide)
- Features
- Nickle Plated Banana with High Temperature Insulation
- Designed to fit on the end of any 18-22 AWG wire
- Cross hole wire entry fits wires up to 3mm diameter
- Set screw simplifies assembly of test leads and jumpers
- Fits standard panel and binding posts
- Specification
- Voltage: Hands free testing in controlled voltage environments: 5000 Vrms Max.
- For CE compliance: not intended for hand-held use at voltages above 33 Vrms/70 Vdc.
- Maximum Operating Temperature: +302 F (+150 C)
- Current Rating: 15 A
- View the Datasheet for the complete Technical Specification.
