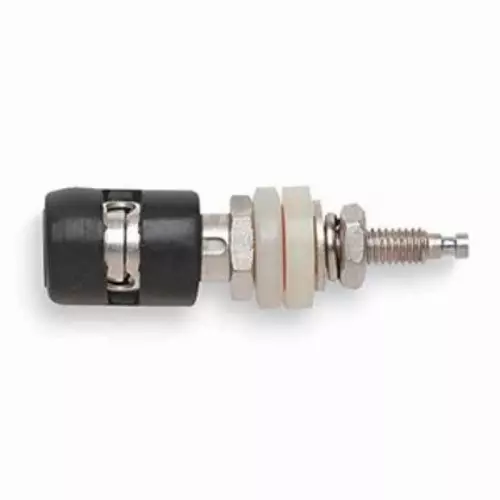

Pomona 4995 Spring Loaded Binding Post
  • Pomona 4995 Spring Loaded Binding Post
  • Features
  • Spring-loaded cap captures wire securely for fast connection and release.
  • Mounts in panels from .062” (1.57mm) to .125” (3.18mm) thick.
  • Accepts wire size up to .0925” (2,35mm) diameter.
  • Complies with MIL-P-55149/8.

Ratings

  • Hands free usage in controlled environments 1200 Vrms Max. For CE Compliance: not intended for hand-held use at voltage above 33 Vrms/ 70 Vdc
  • Current Rating: 15A
  • Temperature: (+115ºC) Max.

View the Datasheet for more information

Pomona 4995 Spring Loaded Binding Post

Visit the Warwick Test Supplies website for more information on Pomona 4995 Spring Loaded Binding Post
