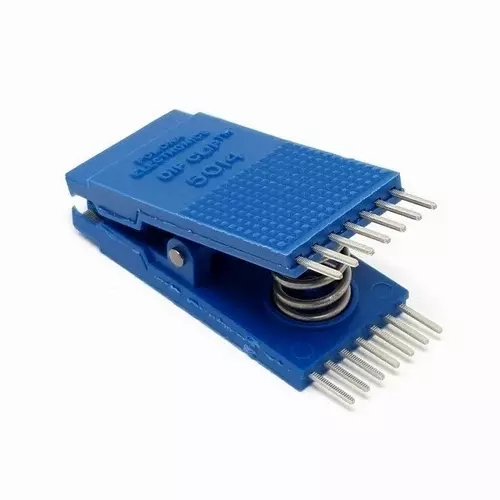

Pomona 5014/POM 14 Pin DIL Test Clip
- Pomona 5014/POM 14 Pin Standard DIL Test Clip Closed Nickel Silver Contacts
- Pomona DIP Clips are designed for testing dual-in-line IC packages and PC Boards. 5014/POM incorporates built-in features that assure a positive electrical connection as well as hands free testing.
- Features
- Contacts (.040" wide on lower end) are serrated for the best electrical contact.
- 0.025" X .028" serrated test points on upper end will accept wire wraps or mini test clips.
- Molded barriers between contacts allows live board connections without accidental shorting of contacts.
- Can also be used as an insertion tool for DIPs.
- Contacts are spring tempered Nickel Silver or Gold Plated Beryllium Copper alloy. Oxide penetrating clips have a roughened stainless steel surface treatment.
- Open back option allows probing on the chip leads while clip is attached
Visit the Warwick Test Supplies website for more information on Pomona 5014/POM 14 Pin DIL Test Clip
