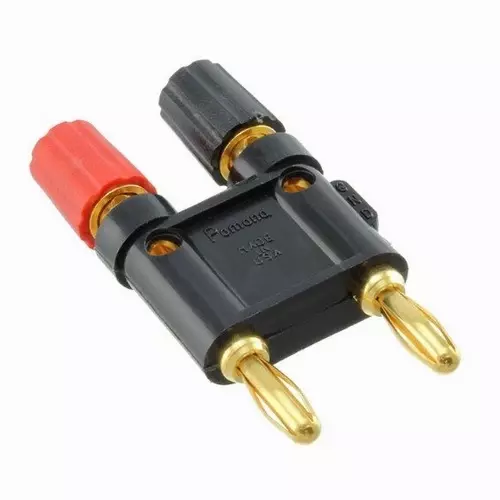

Pomona 5405 4mm Double Banana Plug with Binding Posts
- Pomona 5405 4mm Double Banana Plug with Binding Posts
- The 5405 converts double banana jack test instruments to binding posts for test versatility. The banana plugs can be stacked vertically or horizontally.
- Features
- Wires, spade lugs and pin tip plugs can be attached by means of the insulated knurl thumb knob
- Beryllium Copper for tarnish resistance & long insertion life
- Specification
- Binding Post Body: Brass, Gold Plated
- Insulator: ABS, Molded to the binding post and banana body
- Banana Plug: Brass, Gold Plated
- Operating Voltage: 2500 VDC
- Operating Temperature: +50ºC
- Current: 15A
- Datasheet attached for more specification details
Visit the Warwick Test Supplies website for more information on Pomona 5405 4mm Double Banana Plug with Binding Posts
