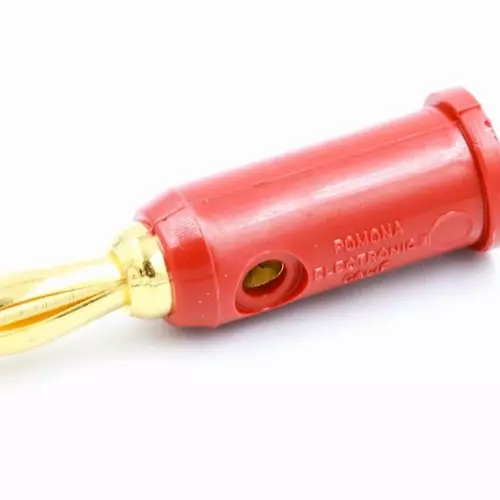

Pomona 5406 4mm Banana Plug Solderless & Stackable
- Pomona 5406 Solderless 4mm Banana Plug for 22-18AWG wire
- The Pomona 5406 is designed to fit on the end of any 22 AWG to 18 AWG wire. The cross hole wire entry fits wires up to 0.12” (3mm) diameter.
- Features
- The Banana Plug is Gold Plated with Polypropylene Insulation
- Designed to fit on the end of any 18-22 AWG wire
- Cross hole wire entry fits wires up to 3mm diameter
- Available with tarnish resistant nickle or gold plating for a very low contact resistance.
- Specifications
- Voltage: For CE compliance and for personal safety, do not hold in hand when voltages exceed 33 Vrms/70 Vdc.
- Maximum voltage for hands free use in controlled testing environments: 5000 Vrms Max.
- Do not use on circuits where transient stresses can exceed the rated voltage.
- Current Rating: 15 A
- Maximum Operating Temperature: +122ºF (+50ºC) max.
- View the Datasheet for more information
Visit the Warwick Test Supplies website for more information on Pomona 5406 4mm Banana Plug Solderless & Stackable
