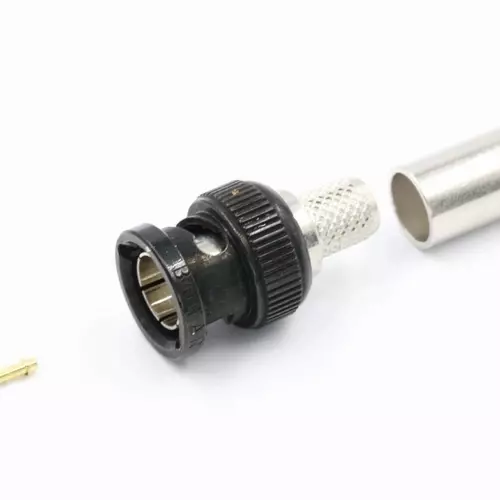

Pomona 6703A BNC Connector for RG-6/U 75 Ohm

The Pomona 6703A High Definition BNC Male Connectors are precision machined (not die-cast) from brass.

The 6703A is obsolete and heavily reduced in price. Buy it now while limited stocks last.Impedance: 75 ohmsFrequency: 0 to 3 GHz.VSWR: 1.3 maxInsertion Loss: 0.2 db (@ 3GHz.)Leakage Loss: -55 db (@ 3GHz.)Contact Resistance: 3 MilliohmsVoltage *500 VInsulation Resistance: 5,000 MegohmsInsertions: 500 min.Cable Retention: 60 lbs.Temperature: -55 to +199°

Pomona 6703A BNC Connector for RG-6/U 75 Ohm

Visit the Warwick Test Supplies website for more information on Pomona 6703A BNC Connector for RG-6/U 75 Ohm
