PSA Group Delphi Vehicle Diagnostic Breakout Lead Set - 2, 3, 4, 5 & 6 Pin Leads

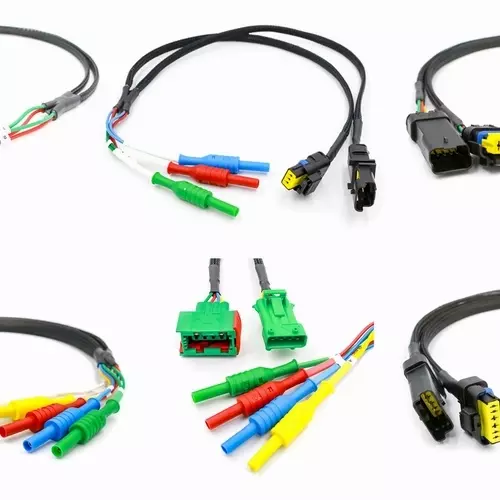

The WACB-P26-SET consists of 5 breakout leads utilising Delphi Sicma FCI Connectors. The breakout leads within this set have been designed to connect to Delphi Automotive Connectors commonly found on Peugeot and Citroen (PSA Group) Vehicles. This complete kit enables quick and reliable connection to Delphi Sicma FCI 2, 3, 4, 5 and 6 pin connectors to conduct fast in-line diagnostic readings.

These breakout leads are also suitable for Ford vehicles that used PSA engines from 2006 - 2014.

Reliable readings start with the point of connection. Ensure your findings are accurate and prevent misdiagnosis with reliable breakouts that are purpose built for the workshop. Prevent damage to vehicles sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various Peugeot and Citroen sensors, actuators and components with new found ease.

Each breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.

All of our automotive breakout leads follow an identical wire and banana plug colour code convention which are matched to pin numbers within the automotive connectors. This allows a technician to always know what pin number they are testing regardless of breakout lead and connector in use. Our WACB automotive breakout leads use the following colour code convention:

• Pin 1 - GREEN wire and banana plug
• Pin 2 - RED wire and banana plug
• Pin 3 - BLUE wire and banana plug
• Pin 4 - YELLOW wire and banana plug
• Pin 5 - WHITE wire and banana plug
• Pin 6 - BLACK wire and banana plug

Set consists of the following breakout leads:

• 2pin PSA Delphi Sicma FCI Automotive Connector Breakout Lead - WACB-P112
• 3pin PSA Delphi Sicma FCI Automotive Connector Breakout Lead - WACB-P113
• 4pin PSA Delphi Sicma FCI Automotive Connector Breakout Lead - WACB-P114
• 4pin PSA Delphi Sicma FCI Lambda Automotive Connector Breakout Lead - WACB-P114L
• 5pin PSA Delphi Sicma FCI Automotive Connector Breakout Lead - WACB-P115
• 6pin PSA Delphi Sicma FCI Automotive Connector Breakout Lead - WACB-P116
