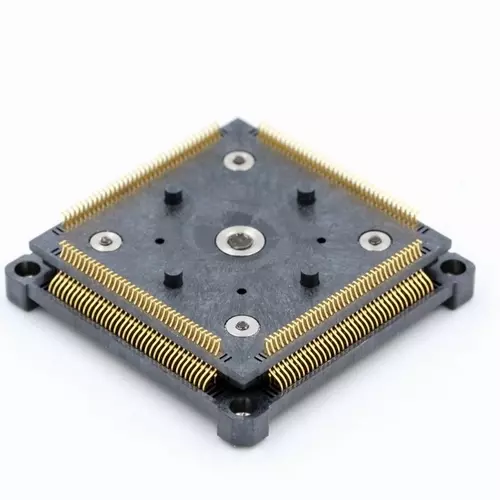

Q2001-0-65 QFP Base IC Socket
- CAB Q2001-0.65-144S QFP BASE IC Socket Adapter - 144pin Quad Flat Package
- QFP - Base Socket - Series Q2001
- CAB Article No: 3303253
- Specification
- Contact: Beryllium Cooper, Nickle 1-3 μm, Q2101 = Gold 0.5 μm, Q2001 = Gold 0.25 μm
- Insulator Body: Liquid Crystal Polymer (LCP) UL94V0
- Rated voltage: 100 VRMS/150 VDC
- Current carrying capacity per contact 0.5 A
- Insulation resistance: > 5 × 10^8 Ω
- Mechanical life >100 cycles
- RoHS Conform
- View the datasheet for further specification details.
- Note that the Socket Cover Q2101 is not included.
