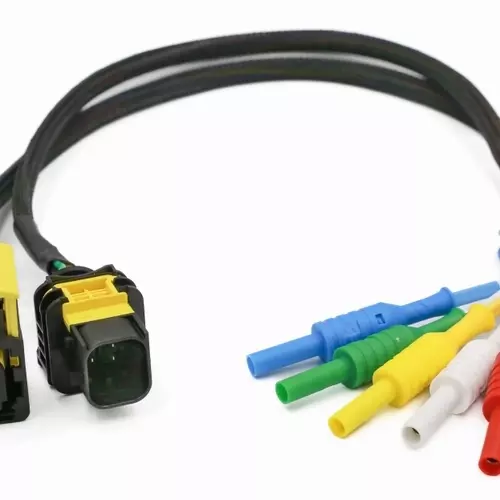

• WACB-606 TE AMP HDSCS 6 pin Automotive Diagnostic Breakout Lead
• Connector Part Number: 1-1418469-1/1-1703773-1
• The 6 Way TE AMP HDSCS breakout lead has been designed to connect quickly and reliably to 6 pin HDSDS automotive connectors to diagnose signals commonly found on agricultural, industrial and commercial vehicles such as plant, tractors and trucks. The breakout lead features both male, 1-1703773-1, and female, 1-1418469-1 connectors.
• Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.
• The WACB-606 breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.
• Reliable readings start with the point of connection. Ensure your findings are accurate and prevent mis

• Pin 1 - GREEN wire and female banana plug
• Pin 2 - RED wire and female banana plug
• Pin 3 - BLUE wire and female banana plug
• Pin 4 - YELLOW wire and female banana plug
• Pin 5 - WHITE wire and female banana plug
• Pin 6 - BLACK wire and female banana plug

MADE TO ORDER
