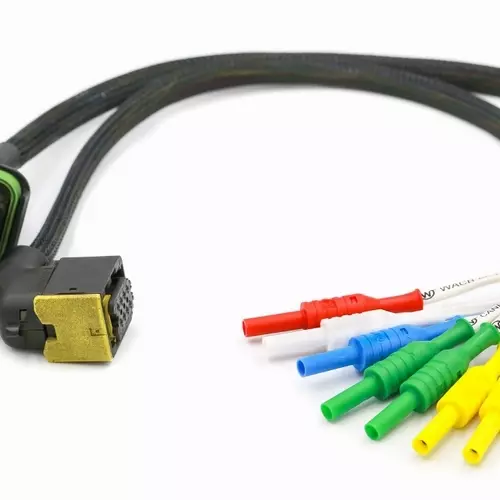

TE AMP HDSCS 8way (Canbus) Automotive Connector Breakout
- WACB-604-A TE AMP HDSCS 8 pin (CANBUS) Automotive Diagnostic Breakout Lead
- Connector Part Number: 1-1418479-1/1-1564416-1
- The 8 Way TE AMP HDSCS breakout lead has been designed to connect quickly and reliably to 8 pin HDSDS automotive connectors to diagnose CANBUS signals commonly found on agricultural, industrial and commercial vehicles such as plant, tractors and trucks. Commonly found on MAN Truck EGR Valves. The breakout lead features both female, 1-1418479-1, and male, 1-1564416-1 connectors.
- Prevent damage to the vehicles' sensors and connectors often caused by back-pin probing. Conduct voltage, current readings and insulation tests on various sensors, actuators and components with new found ease.
- The WACB-604 breakout lead features 4mm banana plug sockets that can be used with a Digital Multimeter, Insulation test meter or Oscilloscope with the use of BNC to 4mm Banana Plug Patch Leads.
- Reliable readings start with the point of connection.
Ensure your findings are accurate and prevent mis-diagnosis with reliable breakouts that are purpose built for the workshop.Our WACB-604 automotive breakout lead use the following colour code convention:
- Pin 1 - RED wire and female banana plug
- Pin 2 - WHITE wire and female banana plug
- Pin 3 - GREEN (CANBUS IN) wire and female banana plug
- Pin 4 - YELLOW (CANBUS IN) wire and female banana plug
- Pin 5 - BLUE wire and female banana plug
- Pin 6 - Not connected
- Pin 7 - GREEN (CANBUS OUT) wire and female banana plug
- Pin 8 - YELLOW (CANBUS OUT) wire and female banana plug
MADE TO ORDER
