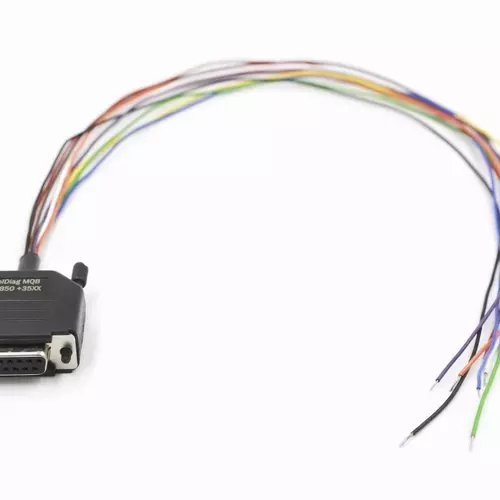

W-AKL-850-35 MQB RH850 +35XX Adapter Cable
  • W-AKL-850-35 MQB RH850 +35XX Adapter Cable
  • A Custom cable designed for use with the PolDiag RH850 and MQB35XX solutions.
  • Consisting of a 15way D-Sub connector wired with 9x multi coloured wires for soldering onto PCB and IC legs.
  • This cable will replace a damaged MQB 35XX adapter cable.
  • Wire length (D-Sub face to end) = 36cm.

Pin Connections:

  • 1: Red 9: N/C
  • 2:N/C 10: Orange
  • 3:Brown 11: N/C
  • 4:Yellow 12: Purple
  • 5: Green 13: White
  • 6: N/C 14: Blue
  • 7: Black 15: N/C
  • 8:N/C
W-AKL-850-35 MQB RH850 +35XX Adapter Cable

Visit the Warwick Test Supplies website for more information on W-AKL-850-35 MQB RH850 +35XX Adapter Cable
